F.SIGHT™
The F.SIGHT is our first generation single-cell dispenser with fluorescent sorting. Our affordable and flexible F.SIGHT enables single-cell assays for monoclonal cell line development as well as single-cell omics studies.
Join 1,000+ Biopharmaceutical Companies and Academic Institutions
Key Features & Benefits
Find out how our product can enrich your research
Assurance of single-cell isolation
Capture nozzle images for every dispensing run to confirm that only single cells were dispensed on the plate.
Fluorophore detection
Detect even the slightest fluorescent signal thanks to the F.SIGHT’s adjustable blue laser and isolate only fluorescent cells.

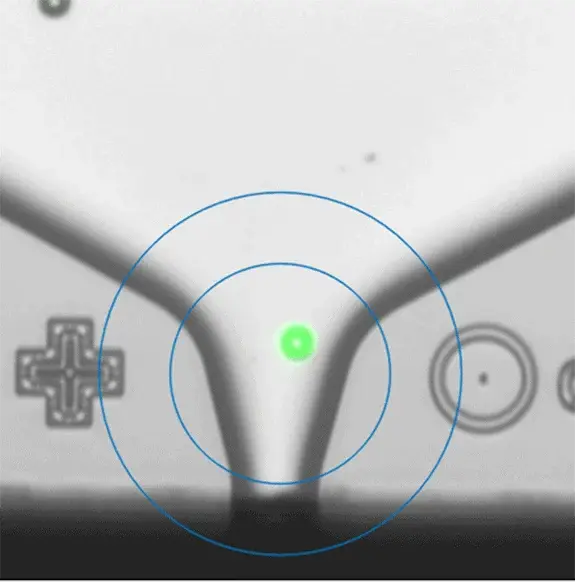

Dual imaging system
Overlay both brightfield and fluorescent images for precise identification of your cells of interest.
Gentle single-cell dispensing
Handle and isolate delicate cells of interest with our no-pressure dispensing, minimizing the stress inflicted on cells.

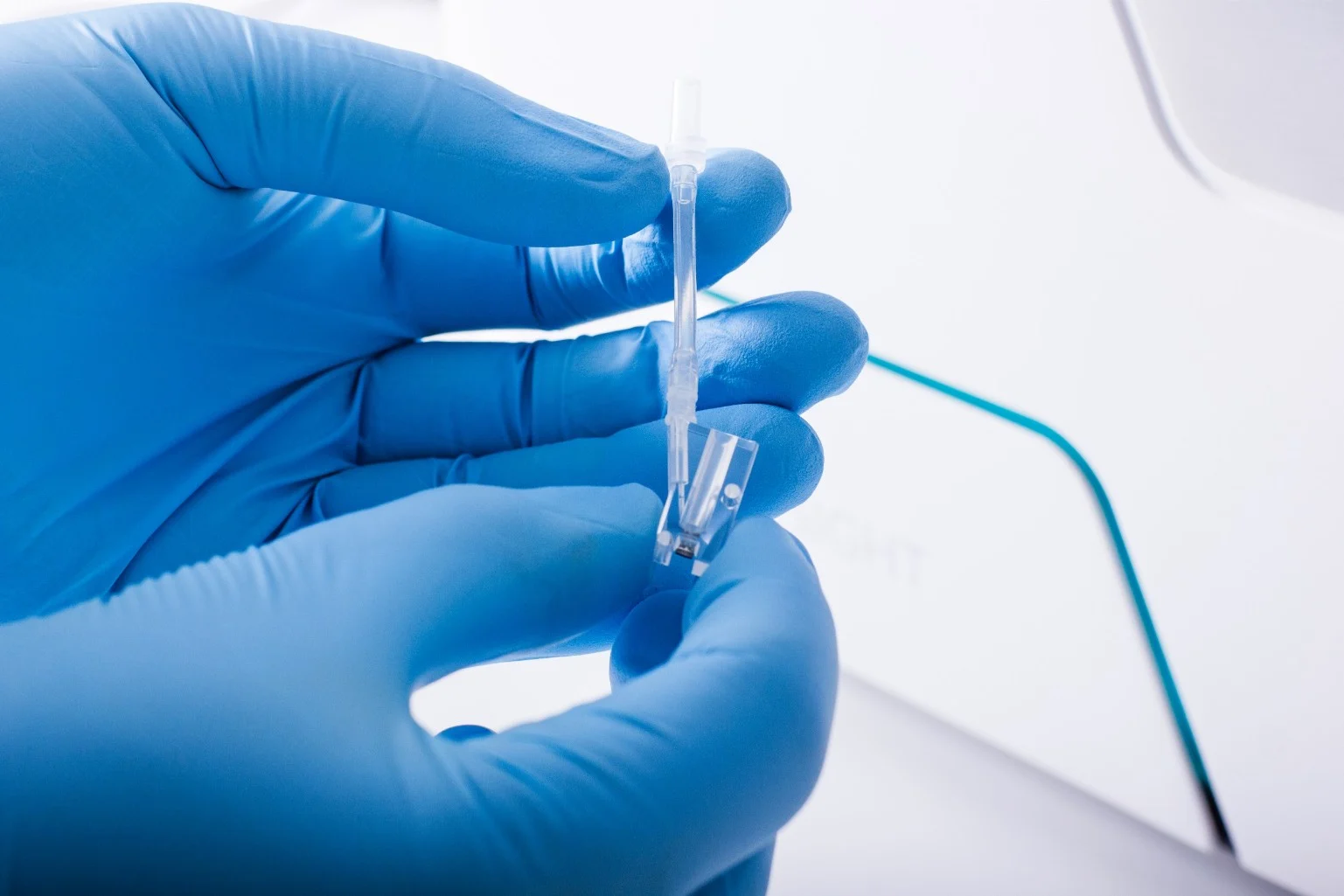

No risk of contamination
Eliminate cross contamination risk during dispensing with single-use CYTENA cartridges.
Fast and accessible technology
Easily set up an experiment and fill a 96-well plate in a couple of minutes.
Product Details
Discover what you can do
Fast and precise dispensing
Isolate single cells in either 96- or 384-well plates quickly. The F.SIGHT can dispense an entire 96-well plate in a couple of minutes. Due to the system’s versatility, a multitude of different cells can be fluorescently labelled and isolated.

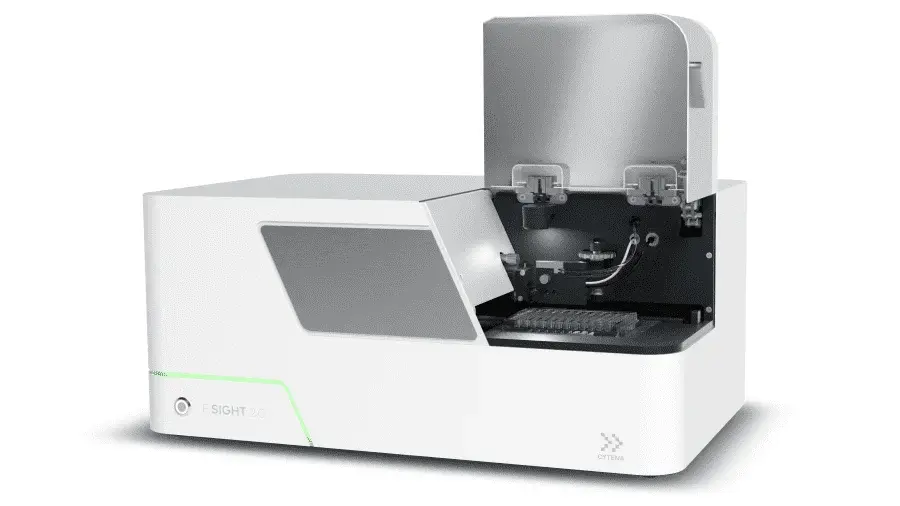

Intuitive design
The F.SIGHT has a simple and intuitive hardware design that makes it easy to use from moment it arrives at your lab. Dispensing runs can be set up in a few minutes.
Powerful software
Quickly set up individual experiments and get a single-cell isolation run set up in minutes. Additionally, the F.SIGHT’s software can provide full resolution brightfield and fluorescence images along with an overlay image.

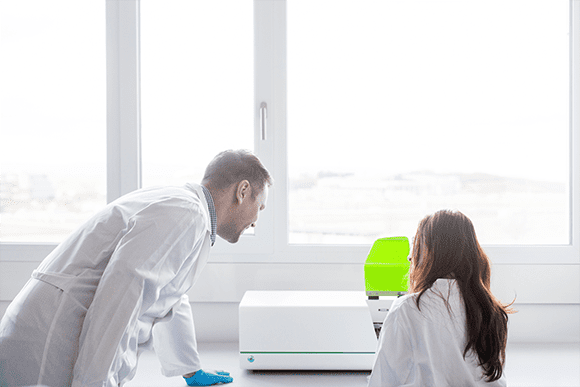

Small footprint
Place the F.SIGHT inside laminar flow hoods to isolate cells in a sterile environment. The system can be operated from outside of the sterile hood via remote control terminals.
Product
Applications
Accelerate your research
Cell line development
Gene therapy
Rare cell research and discovery
Monoclonal cell culture
Single-cell multiomics
Featured Workflow
With the FSIGHT’s fluorescet sorting capabilifies, only single cells of interest are isolated and
dispensed for monoclonal expansion. Affer isolation, clones of inferest are expanded and,
subsequently, the clones with the best yield are selected.
Download Application Notes
For scientists by scientists, these notes highlight novel ways to optimize
your research with our products and solutions
your research with our products and solutions
No Posts Found.
Cell Line Development | Gene Therapy|F.SIGHT™ | F.SIGHT™ 2.0 | F.QUANT
Cell Line Development | Cell therapy & Stem cells|UP.SIGHT™ | F.SIGHT™ | F.SIGHT™ 2.0
Cell Line Development|F.SIGHT™ | F.SIGHT™ 2.0
Product Datasheet
| Samples | Eukaryotic cells |
| Cell size | 5 – 40 µm |
| Sorting | Cell morphology and fluorescence |
| Droplet volume | ~200 pL |
| Substrate | 96- and 384-well plates |
| Nozzle imaging | Camera CMOS Magnification 10x Dual-channel: Brightfield and fluorescence |
| Fluorescence nozzle imaging | Ex. 488 nm Em. 520 +/- 36 nm |
| Processing times | Single-cell dispensing 96-well plate: ~ 5 min Single-cell dispensing 384-well plate: ~ 15 min |
| Cartridge | 40 µm disposable cartridge to avoid cross-contamination |
| Embedded computer | Windows |
| Compatibility | Standard biosafety cabinets class 2 |
| Footprint | 600 x 400 x 240 mm |
| Weight | 35.5 kg |
| Certification | CE, CB, UL (TÜV), RoHS |
