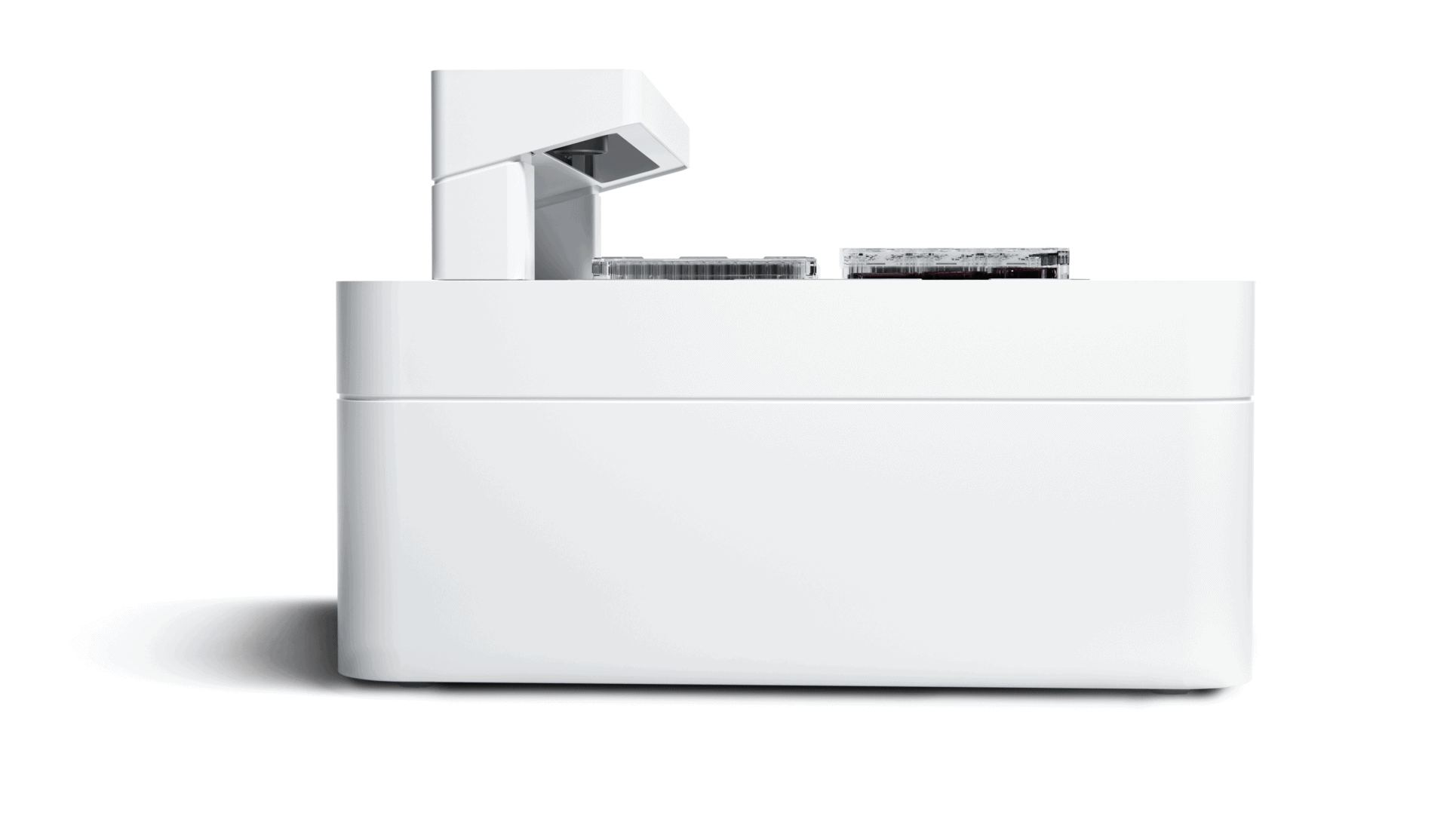

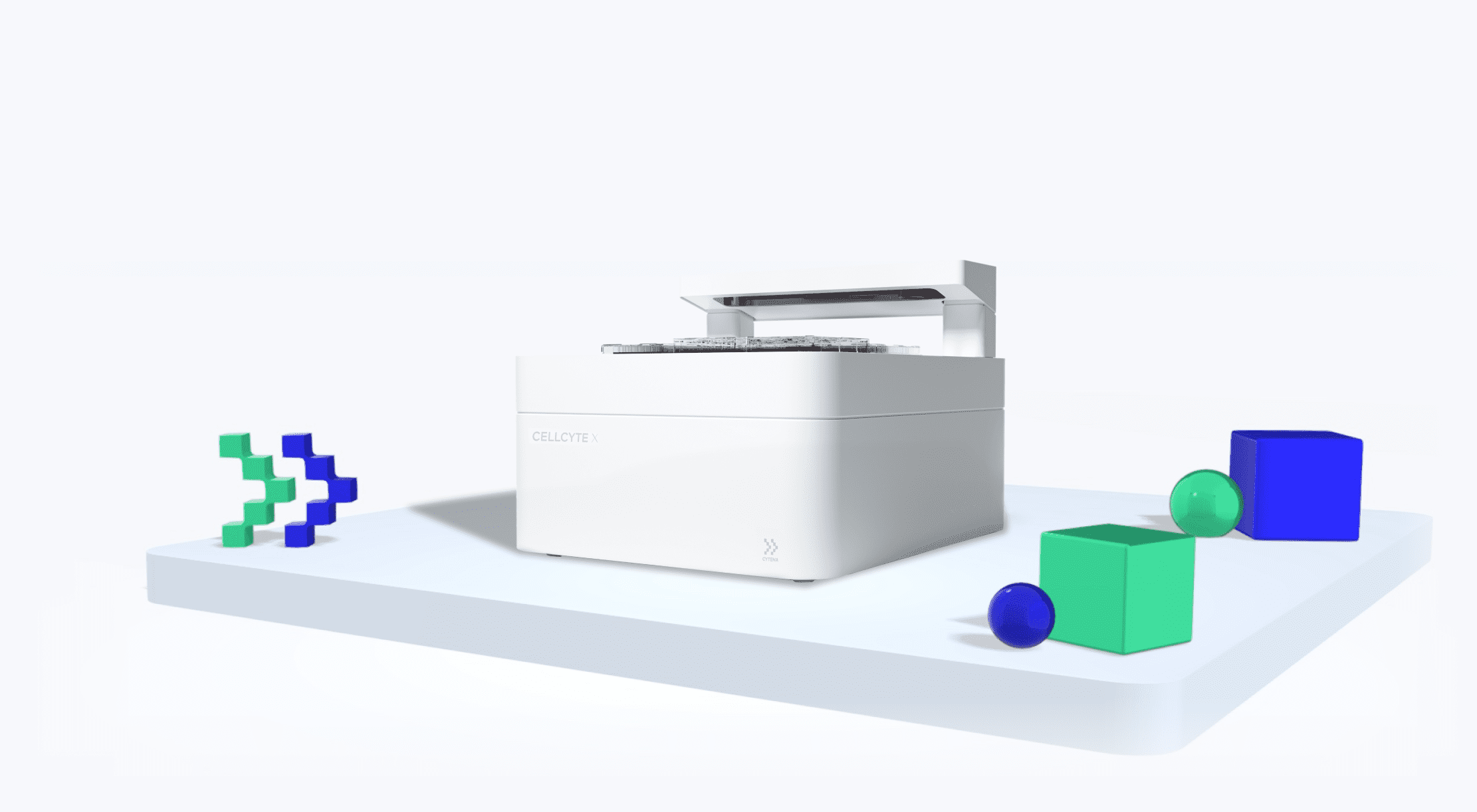

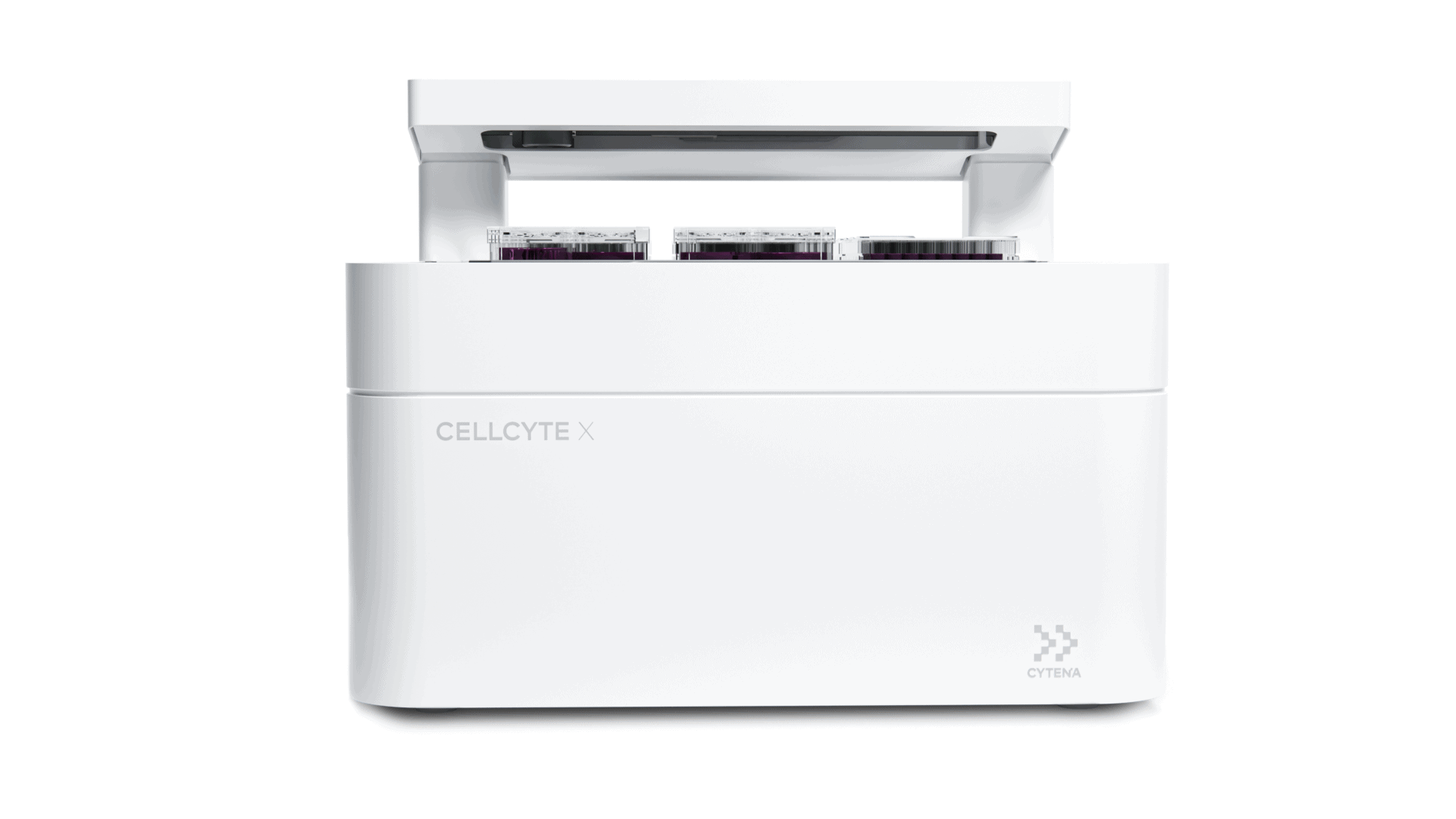

CELLCYTE X™
We recognize that science evolves with time and your research should as well. To leverage the power of continuity and address the most-pressing challenges in cell biology, we have developed the CELLCYTE X, a high-throughput live cell imaging system that’s user-friendly, efficient, and robust.
With our live cell imaging system hosted within the incubator, researchers can rewind and replay images acquired from multiple time points to better follow the sequence of biological events and get a comprehensive picture of cell kinetics. Read more below to see how the CELLCYTE X can make a difference in your lab & analyses.
Join 1,000+ Biopharmaceutical Companies and Academic Institutions
Key Features & Benefits
Find out how our product can enrich your research
Open design
Ease of maintenance and improved control of cellular environment.
Improved cell viability
Less disturbances over the course of your experiment, reducing the chances of cellular abnormality.
Real-time
data analysis
With data collected and processed in real time throughout the experiment.
High throughput
Run 6 vessels concurrently to maximize your throughput.
Uninterrupted
workflow
Streamline image acquisition and analysis with our intuitive software platform.
Versatility
Multiplex your experiment with Enhanced Contour imaging mode plus 3 fluorescent channels.
Improved
data output
Acquire and store thousands of images per experiment.
Simple hardware
Compact and easy to set up.
Multiple Applications
Gain a more comprehensive picture of cellular kinetics through performing key applications - now at your fingertips
Product Details
Discover what you can do
Intuitive and comprehensive
CELLCYTE STUDIO software
CELLCYTE STUDIO software
- Analyze spheroids
- Capture images and movies in real-time
- Flexible scheduling options
- Automated graphing tools
- Platemap feature to plan out your studies
- head of time
- 4x imaging

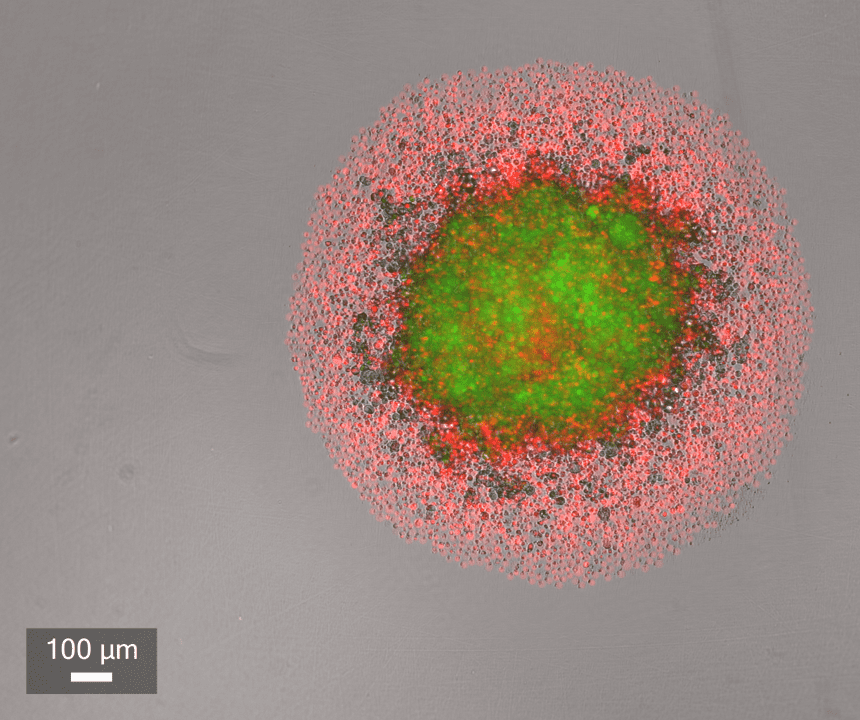

Real-time analysis
of spheroid assays
of spheroid assays
- Streamlined workflow to monitor spheroid formations inside your incubator
- Ensured autofocus at every timepoint for long-term live cell studies
- Powerful analysis algorithm for accurate spheroid masking and tracking
- Diverse analysis metrics supporting a wide range of spheroid assays
- Maximize throughput and reproducibility by running up to 6 plates in a 96-well plate format

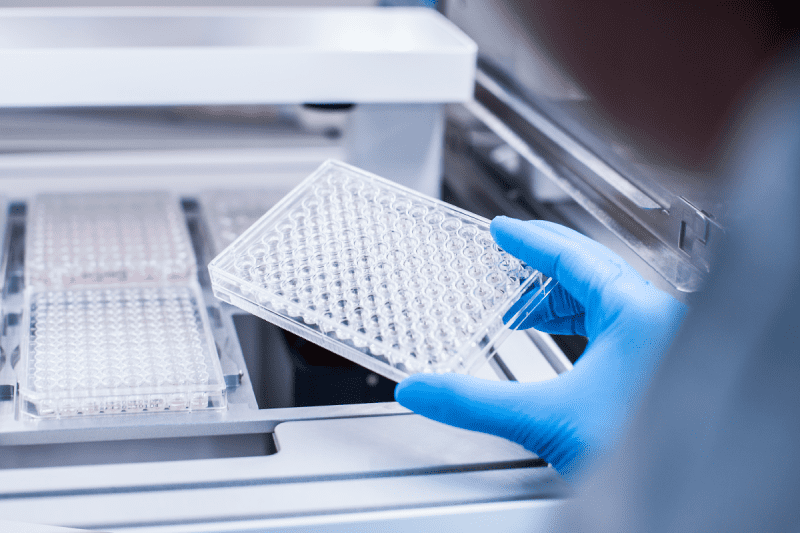

Optimized workflows
to maximize efficiency,
save time, uncover highly
reproducible data
to maximize efficiency,
save time, uncover highly
reproducible data
- Easy setup for user-intuitive experiments
- Prepare up to 6 vessels concurrently
- Compatible with multiple vessel types and user protocols
- Automatically capture images at user-denned time points
- Acquire images from inside the incubator
- Maintain optimal environment and maximize cell viability
- Guide users to conclusive observations and results
- Produce publication-quality graphs
Product
Applications
Accelerate your research
Cytotoxicity
Apoptosis
Spheroid growth
Immunology
Transfection efficiency
Featured Workflow
Optimize your workflows while maximizing efficiency, saving time, and yielding highly
reproducible data. With an easy setup, ability to monitor cell behavior in real time, intuitive
software, and instant data visualization, you’ll have the tools you need for ultimate success in
any application area. Complete the full live cell imaging solution for peak results day-to-day.
reproducible data. With an easy setup, ability to monitor cell behavior in real time, intuitive
software, and instant data visualization, you’ll have the tools you need for ultimate success in
any application area. Complete the full live cell imaging solution for peak results day-to-day.
Download Application Notes
For scientists by scientists, these notes highlight novel ways to optimize
your research with our products and solutions
your research with our products and solutions
No Posts Found.
Cell imaging|CELLCYTE X™
Cell imaging|CELLCYTE X™ | CASY
Cell imaging|CELLCYTE X™
Cell imaging | Cell-Based Assay|CELLCYTE X™
Cell imaging | Cell therapy & Stem cells | Cell-Based Assay|CELLCYTE X™
Product Datasheet
| Flourescence Microscopy Channels | Blue | Ex 370-410 nm Em 429-462 nm |
| Green | Ex 473-491 nm Em 502-561 nm | |
| Red | Ex 580-598 nm Em 612-680 nm | |
| Enhanced Contour | Contrast rich transmission Imagining mode | |
| Objective | 4x | Resolution: 0.862 μm/pixel Field of View: 2.1 x 1.77 mm |
| 10x | Resolution: 0.345 μm/pixel Field of View: 0.8 x 0.7 mm | |
| Camera System | 5 megapixel 0.66 inch mono CMOS sensor | 24448 x 2048 pixels |
| Exported Image Format | Time Lapse Single image | TIFF |
| Exported Movie Format | AVI | |
| Exported Data Format | CSV, XLXS | |

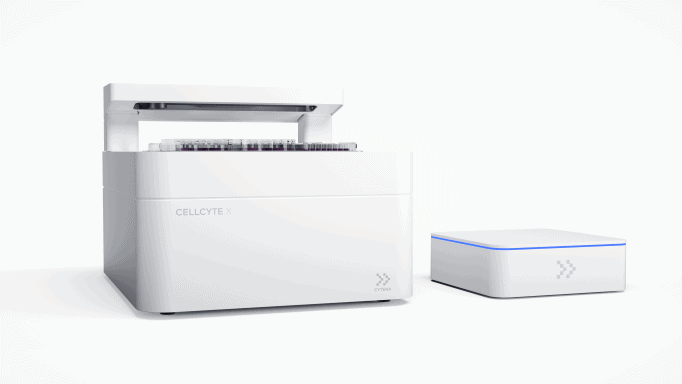

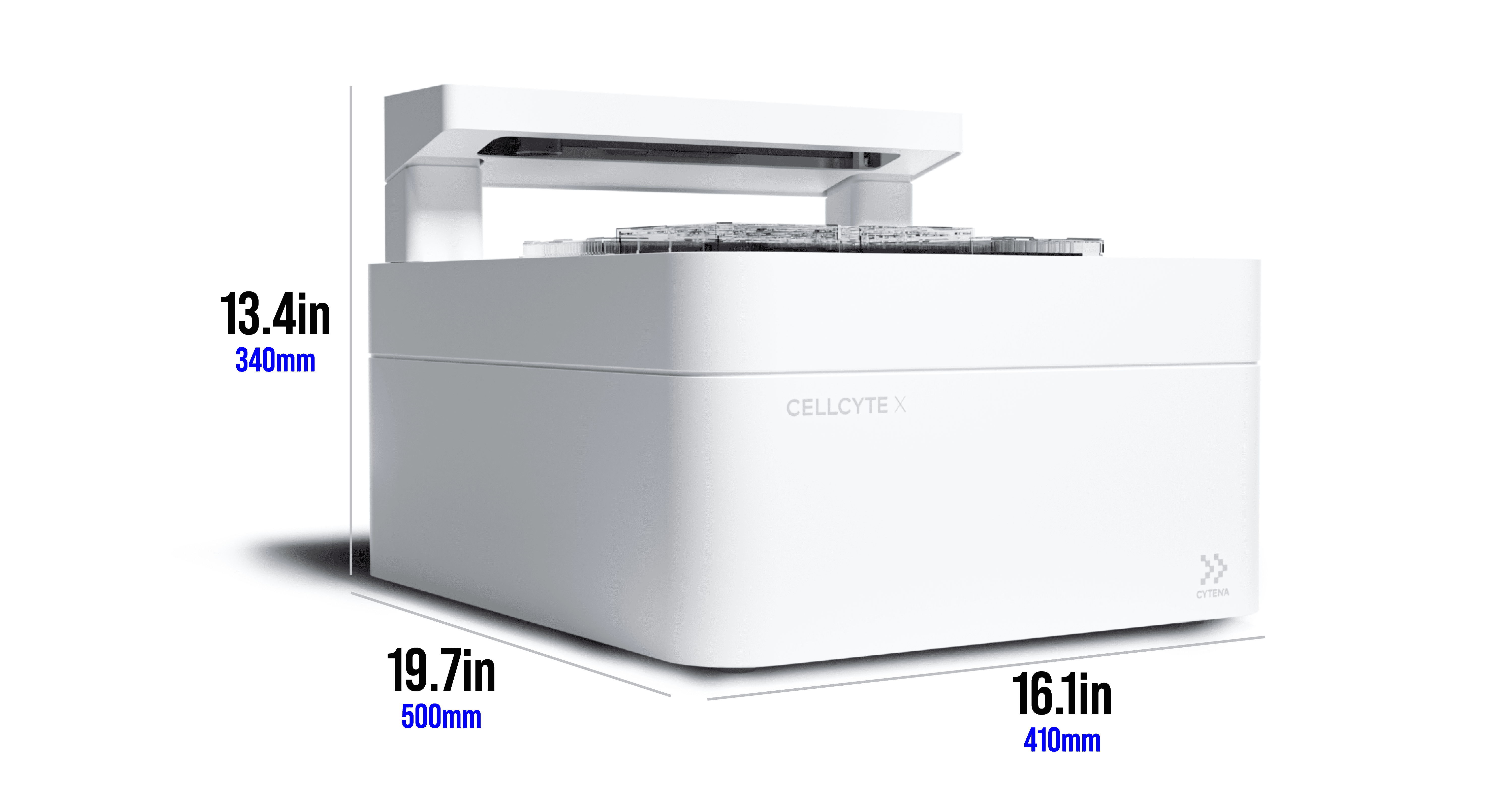

| CELLCYTE X Imagining Unit | Dimensions (W x D x H) | 410 x 500 x 340 mm |
| Operating Conditions | 10/40° C. RH up to 95% | |
| CELLCYTE X Controller Unit | Dimensions (W x D x H) | 250 x 250 x 90 mm |
| Internal Storage | 10 TB | |
| Operating Conditions | Intended for indoor use 20-40° C | |
| Power Input | 100-240 VCA, 50-60 Hz, 70W | |
| System Recommendations | OS: Microsoft Windows 10 Operating System (64-bit) | Storage: 500 GB SSD (or larger) |
| CPU: 2 GHz or faster Intel Core Duo Processor. | GPU: Nvidia GPU with 8 GB of VRAM or more | |
| RAM: 8GB or more | *Requited for CELLCYTE Analysis. |
Starting from $58,456
